Stainless Steel Super Fine Wire Mesh For Screen Printing
Screen Printing is a printing technique that uses woven wire mesh
to transfer ink onto the substrate board. A blade or squeegee is
moved across the screen to fill the openings of the mesh with ink
or paste. A stencil will block parts of the openings of the mesh to
create a design on the surface being printed on.
At the beginning, fine silk screens were used for screen printing.
But the silk mesh was soft and not strong enough, and very easy to
be swelled up and torn out. This is the main problem, if use the
silk mesh for screen printing, it could not hold up.
Nowadays, the most commonly used media for screen printing are
stainless steel fine woven wire mesh, polyester, and nylon wire
mesh. They have heavier tensile strength and could be used longer
time than silk mesh. So the silk mesh for screen printing is less
and less.
King De Long Wire Mesh Company, as an experienced wire mesh manufacturer, can produce and supply
stainless steel super fine wire mesh for the screen printing
industry.
Advantages of Stainless Steel Fine Wire Mesh for Screen Printing
Stabilized Tension
During the work, the mesh could be stretched at a very high rate,
but without changing the shape of each hole very much.
Stability and Durability
Stainless Steel Fine Woven Wire Mesh could work well in hard
conditions, even with the smaller opening sizes and thinner wire
diameters.
Heating Capabilities
Compared with Nylon or Polyester, Stainless Steel Fine Woven Wire
Mesh, obviously has much better heat resistance.
Here are some very commonly used specifications of stainless steel
fine wire mesh for screen printing, just for your reference. Other
specifications, sizes, and woven types are made to order. Please
contact our sales team to discuss this.
| Commonly Used Specifications of SS Fine Wire Mesh For Screen
Printing |
| Mesh Count | Aperture (mm) | Diameter (mm) | Open Area % | Weight kg/m2 |
| 120 | 0.1 | 0.09 | 33.0 | 0.5 |
| 130 | 0.2 | 0.04 | 60.8 | 0.1 |
| 145 | 0.1 | 0.06 | 41.0 | 0.3 |
| 150 | 0.1 | 0.06 | 39.4 | 0.3 |
| 160 | 0.1 | 0.04 | 59.8 | 0.1 |
| 165 | 0.1 | 0.05 | 45.6 | 0.2 |
| 180 | 0.1 | 0.03 | 62.0 | 0.1 |
| 180 | 0.1 | 0.05 | 41.7 | 0.2 |
| 200 | 0.1 | 0.04 | 46.9 | 0.2 |
| 200 | 0.1 | 0.05 | 36.8 | 0.3 |
| 200 | 0.1 | 0.06 | 31.3 | 0.3 |
| 230 | 0.1 | 0.04 | 45.4 | 0.2 |
| 250 | 0.1 | 0.04 | 36.8 | 0.2 |
| 270 | 0.1 | 0.04 | 38.1 | 0.2 |
| 300 | 0.1 | 0.03 | 41.7 | 0.1 |
Attention
Be careful of the cutting sharp edge, and avoid getting hurt while
open and use.
Before you order your mesh, please first check out our stock list,
where we put our over-run bargain rolls at lower prices.
King De Long Wire Mesh can manufacture not only woven wire mesh but
also welded wire mesh with the specified wire and mesh size you
required. Should you have a particular specification in mind,
please contact us to discuss your requirements.

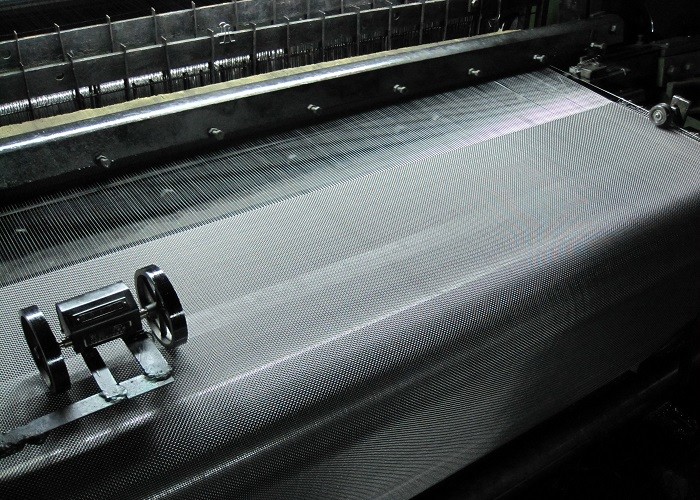

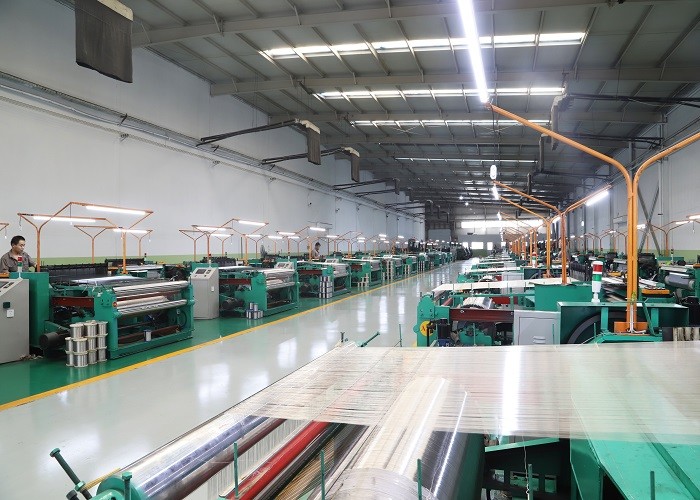

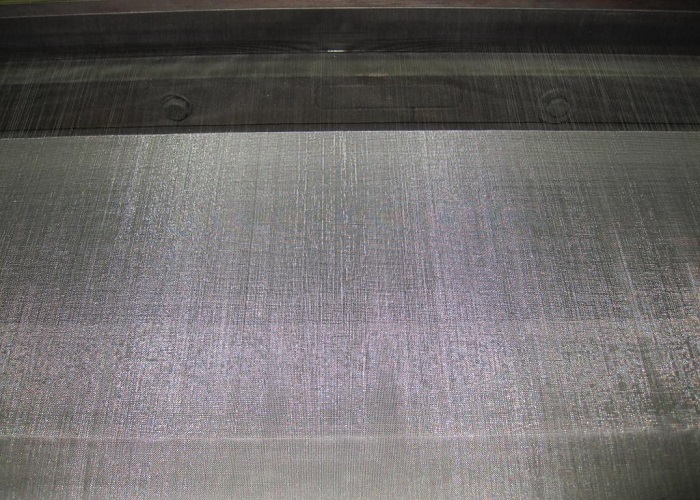

For your reference, some photos of our products and factory are
listed here, please check.
